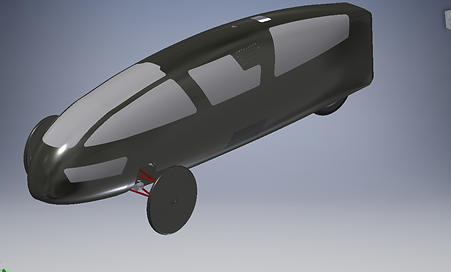

Vehicle: Dark Mirage

New heart, a new guise

The Dark Mirage is a raw and instinctive machine which ignites your innate desire for the race track.

Powered by a single hydrogen fuel cell, it delivers an efficient drive and pollution-free propulsion.

Specifications:

Vehicle Category: Prototype

Energy Type: Hydrogen

Drive Source: Spectronik Protium-700 Hydrogen Fuel Cell

Rated Power: 700 Watts

Drive Type: Rear Wheel Drive

Transmission: Shimano Alfine11-Speed Electronic Gear Hub

Motor: Maytech 6355 170KV Brushless Motor

Top Speed: 95 km/h

Chassis: Aluminum -- Bamboo Hybrid Chassis

Body Shell: Carbon Fibre (1 Single Mainshell mounted to the chassis directly + 2 Top cover pieces)

Suspension: Double Wishbone Suspension at the Front; Bamboo Chassis acting as damper at the rear

Steering Design Setup: Reverse Ackerman

Suspension demonstration with effective damping performance!

A retro-modern, sleek & functional steering wheel

design...

Manufactured with FDM 3D-printing...

Tested with different filaments and bonding agents...

simulated to be tough and compatible with the Dark Mirage for the most optimum performance!

The Final Product:
